Parts Identification Page

This page is to help you identify selected spare parts so you may more easily order replacements.  Each link goes to the section of spares for that item.  Please note that not all spare parts are listed.  Only those that may be difficult to describe or order.  Click on the thumbnail for larger picture.

LINKS

PROBE TIPS

825 MICROPOSITIONER PARTS

LAMPS

725 MICROPOSITIONER PARTS

PROBE HOLDERS

MERCURY PROBES

HOT CHUCKS



PROBE TIPS  BACK


Standard Tungsten probe tips, Box of 5.

    Click on picture to enlarge


Tungsten probe tips with "CAT WHISKER" tip, Box of 5.

  Click on picture to enlarge


Retractable probe tip to be used with 725-896 Micropositioners, Box of 1.

   Click on picture to enlarge



   825 Probe Assemblies  BACK


Micropositioner body only. Available in left (L) or right (R) side X-axis control and magnetic or vacuum base.

   Click on picture to enlarge


Probe arm assembly to be used with 825 micropositioners.   X= length, standard is 3".

    Click on picture to enlarge



LAMPS  BACK


12 V Lamp for use with QuietCHUCK and DuoCHUCK Systems.

   Click on picture to enlarge


Replacement Halogen lamp for MM7 style microscopes.

   Click on picture to enlarge


Replacement lamp for use with Arista illuminator.

   Click on picture to enlarge


Fluorescent lamp for use with S&Y ring illuminator.

   Click on picture to enlarge


Replacement Halogen lamp for fiber optic illuminators.

  Click on picture to enlarge



725 PROBE ASSEMBLIES  BACK


Micropositioner body only. Available in left (L) or right (R) side X-axis knobs.

   Click on picture to enlarge


Replacement knob assembly for 725 micropositioner.

   Click on picture to enlarge


Replacement Spring Head Assembly for 725 micropositioner.

   Click on picture to enlarge


Replacement Fixed Head Assembly for 725 micropositioner.

  Click on picture to enlarge



PROBE HOLDERS  BACK


Adjustable probe holder to be used with 825-01-X probe arm.

    Click on picture to enlarge


Probe holder for model 725 micropositioner.  Available in 2" (S1) and 4" (S2).  XX= Cable length.  Box of 1

    Click on picture to enlarge


Adapter for model 725 micropositioner to hold retractable probes.  XX= Cable length.

   Click on picture to enlarge


Adapter (with Z bend) for model 725 micropositioner to hold retractable probes.   XX= Cable length.

   Click on picture to enlarge



MERCURY PROBE  BACK

Casting Assy.jpg (52310 bytes) BA-150-0 (6") / BA-200-0 (8"), BASE ASSY

Casting available for either 6" (150 mm) or 8" (200 mm) platforms.

    Click on picture to enlarge


Trap assembly for Model 811 and 802 Mercury Probes, with vacuum leak hole.

    Click on picture to enlarge

TR-811-1.JPG (22086 bytes)TR-811-1, Trap Assembly, without Leak Hole

Trap assembly for Model 811 and 802 Mercury Probes. No leak hole.

    Click on picture to enlarge


Top Arm Assembly for the 3" Model 811 and Model 802 Mercury Probes.

    Click on picture to enlarge


Top Arm Assembly for the 6" Model 811-150 and Model 802-105 Mercury Probes.

   Click on picture to enlarge


Top Arm Assembly for the 8" Model 811-200 and Model 802-200 Mercury Probes.

   Click on picture to enlarge


 Top Arm Contact assembly for all current versions of Mercury Probes.

   Click on picture to enlarge


Measurement platform for the  3" Model 811 and Model 802 Mercury Probes.

    Click on picture to enlarge


Measurement platform for the 6" Model 811-150 and Model 802-105 Mercury Probes.

   Click on picture to enlarge


Measurement platform for the 8" Model 811-200 and Model 802-200 Mercury Probes.

   Click on picture to enlarge


Replacement rotary control switch for model 802 series Mercury Probes.

    Click on picture to enlarge


Mounting bracket for Rotary switch for model 802 series Mercury Probes.

    Click on picture to enlarge


Control Arm assembly for Model 811 and 802 Mercury Probes.

    Click on picture to enlarge


Early controller for Model 802 Mercury Probes.

    Click on picture to enlarge


Current manual controller for Model 802B Mercury Probes.

    Click on picture to enlarge


Current automated controller for Model 802C Mercury Probes.

    Click on picture to enlarge


Replacement solenoid  for 802 series Controllers.

    Click on picture to enlarge

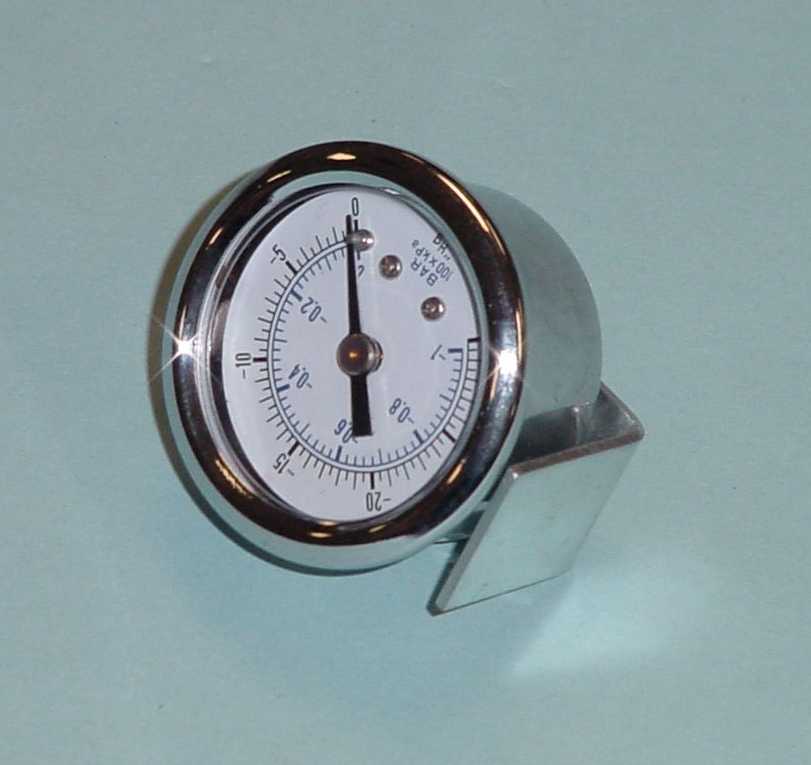

Replacement Vacuum Gauge for model 802 series Controllers.

    Click on picture to enlarge


Replacement Vacuum Regulator for model 802 series Controllers.

    Click on picture to enlarge


Replacement Power Supply for model 802 series Controllers.

    Click on picture to enlarge


 Replacement Vacuum Pump for models 802B series Mercury Probes.  Specify manufacturer.

    Click on picture to enlarge


 Replacement Vacuum Pump for models 811 and  802 series Mercury Probes.  XX=110 or 220 volt.

    Click on picture to enlarge


Reservoir and trap O-Rings for models 811 and  802 series Mercury Probes.

    Click on picture to enlarge


Spare Glass vials with caps for models 811 and  802 series Mercury Probes.

    Click on picture to enlarge

802-MK-00, Maintenance Kit

 Maintenance kit including 4 ea. glass vials, O-Rings, 2 ea. mercury trap filters.

    Click on picture to enlarge

802-08-F, 802B HG Vapor Filter

Mercury vapor filter for 802B or 802C controllers (requires modification of controller.)

    Click on picture to enlarge

HGD - HGD-200, Enclosure for 802B and 802C Mercury Probes

Metal enclosure with electrical and vacuum feedthrough connectors.  Use model HGD for 150 mm and smaller Mercury Probes.  HGD-200 for 200 mm probes.  Supplies ambient light control and mercury containment.

    Click on picture to enlarge

HG-SPK, Mercury Spill Kit

Mercury spill control station.  Includes equipment and supplies to handle mercury containment and clean-up.

    Click on picture to enlarge



HOT CHUCKS  BACK


Available in 6", 8", and 12" sizes. (X=DIAMETER, YY=PLATING: NI-Nickel, AU-Gold, HT-High Temp)

    Click on picture to enlarge


For placing on top of room temperature vacuum chuck.  Includes temperature isolation cooling.

Available in 4", 6", and 8" sizes.  (X=DIAMETER, YY=PLATING: NI-Nickel, AU-Gold, HT-High Temp)

    Click on picture to enlarge
